Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Máy hàn sợi kim loại | Tình trạng: | Mới |
|---|---|---|---|
| Tự động hóa: | Tự động | Bảo hành: | 2 năm |
| Cân nặng: | 2600kg | Điện áp: | 380v |
| Phạm vi dính: | 3-20 triệu | Max dài: | 3000 mm |
| Phạm vi của ứng dụng: | PP, PE, PVC, PVDF, PPN | kích thước: | 3800*1200*1200 |
| Gói: | 4800*1300*1450 | Chức năng: | Lăn và hàn |
| Làm nổi bật: | plastic sheet welding machine for tanks,butt fusion welding machine for plastic,rectangle tank plastic welding machine |
||

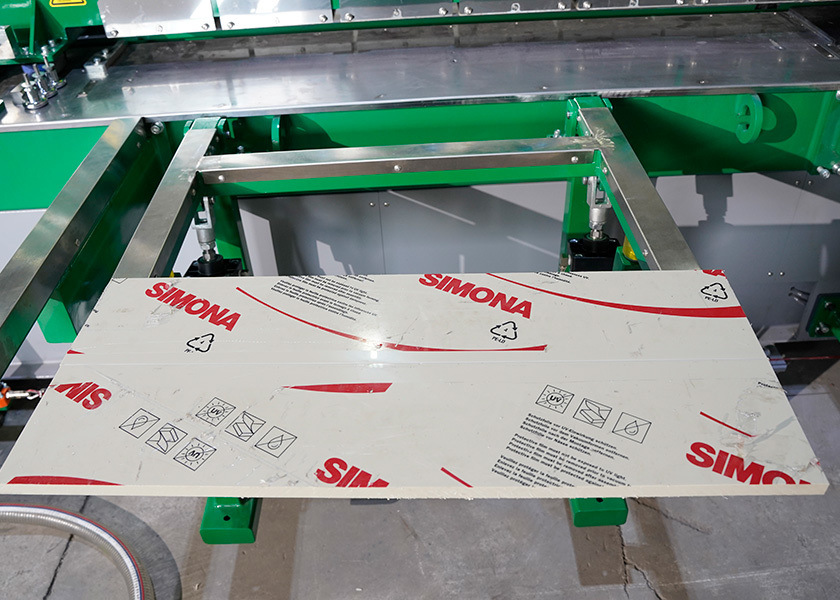

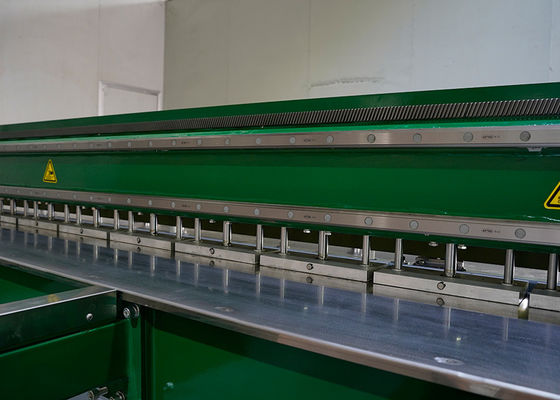

SWT - PH3000 Automatic 3000mm Plastic Sheet Butt Fusion Welding Machine
Sheet Butt Fusion Welding Machine Application:
Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.
Sheet Butt Fusion Welding Machine Specification:
| Specification/Size | SWT-PH3000 |
| Weldable sheet thickness(mm) | 3.0-30.0 |
| Max working length(mm) | 3000 |
| Roll circle diameter minimum(mm) | 380 |
| Air pressure(kg.f/cm²) | 4.0-8.0 |
| Energy source(m³/min) | 0.0032 |
| Rated voltage(V) | 380V |
| Rated current(A) | 9A |
| Heating Power(kW) | 4kW |
| Rolling Motor Power(kW) | 1.5kW |
| Heating mode | Overall heating |
| Drum institutions motor power | Optional |
| External dimensions(L*W*H) mm | 3800*1200*1200 |
| Packing dimensions(L*W*H )mm | 4000*1300*1450 |
| N.W KGS | 1550kg |
| G.W KGS | 2000kg |
Sheet Butt Fusion Welding Machine Features:
Versatile use:
Welding function and bending function are both available in our model.
Efficient and accurate:
Siemens control system and touch screen control mode make the control efficient and accurate.
Easy to use:
Our strong point are to design easy-to-use equipments, not complicated ones.
You can finish every function within 5 steps with our model.
Wide applicability:
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
Stable performance:
With most-to-up technology and top designers we successfully design and manufacture for customers.
The plates processed by our model have good-looking appearance and the angle is very strong.
Easy-to-maintain:
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.
Application:
After-Sales Service:
We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free.
