Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Máy hàn màng địa kỹ thuật CX500S | Điện áp: | 220V |
|---|---|---|---|
| Tính thường xuyên: | 50Hz | Quyền lực: | 1400W |
| Tốc độ hàn: | 0-8m/phút | Độ dày vật liệu hàn: | 0,8mm-3mm |
| Làm nóng nhiệt độ: | 0-450℃ | Trọng lượng tịnh: | 10kg |
| cách hàn: | Cách hàn giống nhau và cách hàn cả hai bên |

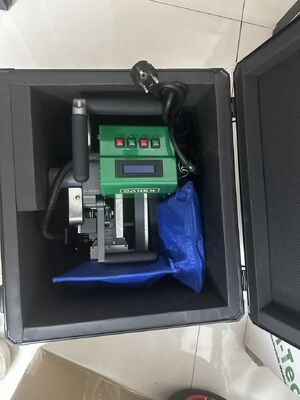

The CX500S geomembrane welding machine is engineered for reservoir tank applications, featuring copper or brass hot wedges to ensure efficient and precise welding processes. Designed to handle membranes of various materials, this machine offers exceptional performance for geomembrane welding projects with thickness ranges from 0.8mm to 3mm.
Built with German-imported bearings for superior stability and durability, the CX500S ensures long-term reliable operation. The equipment incorporates imported heating elements capable of maintaining stable high-temperature performance, while interchangeable welding nozzles adapt to diverse welding requirements.
| Voltage | 220V |
| Frequency | 50HZ |
| Power | 1400W |
| Welding Speed | 0-6m/min |
| Heating Temperature | 0-450℃ |
| Welding Material Thickness | 0.8mm-3mm |
| Welding Seam Strength | ≥85% original material |
| Overlap Width | 100mm |
| Net Weight | 10kg |
| Welding Seam Width | 16mm*2, interior cavity material |
Constructed from die-cast aviation aluminum with surface painting, providing lightweight yet robust construction.
CNC-machined bearing positions and screw holes utilizing Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
Computer chip programming controls temperature and speed with clear digital LCD display.
Ergonomic double handle design with high-strength spring pressure nuts for easy adjustment.
Copper hot wedge offers superior thermal conductivity and viscosity, with secure fixing screws.
50mm wading depth capability with curved tube design for optimal performance.
